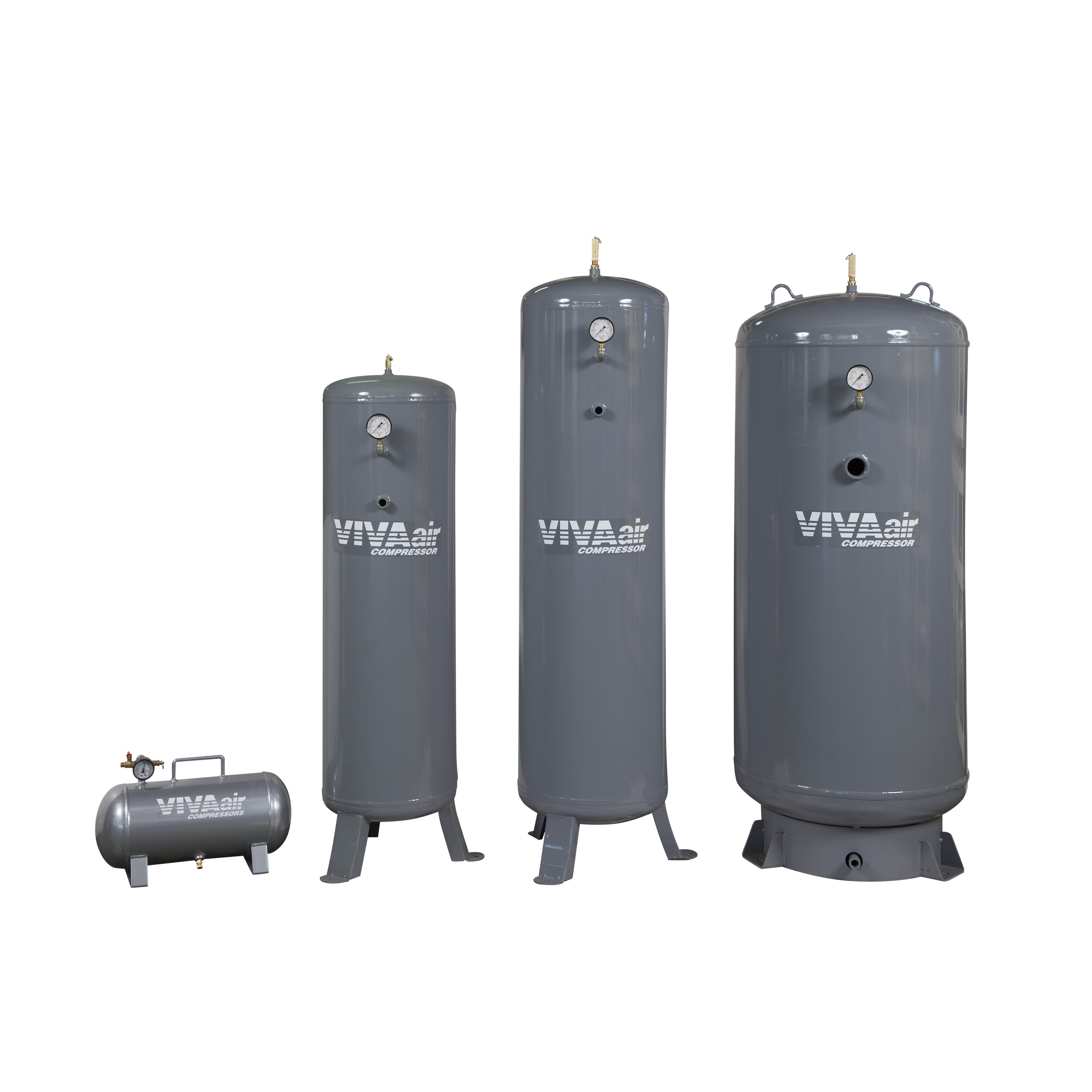

Vertical Air Tanks

MingTyan offers a range of vertical air receivers from 88 to 660 litres that are suitable for different industrial air compressed systems. The product is supplied with all necessary fittings. When applying vertical air receiver in your system, the system creates higher air consumption capacity than compressor as it works like a buffer allowing the distribution system for air temporarily.
  • Unique design with twin tank and lower height.
  • High efficiency.
  • Easy to carry.
  • Ideal for all applications in accessories and pneumatic tools.
型 號 桶 容 量 尺 寸 淨重
MODEL Liter Gal cm kg
T-88 88 23 50*50*110 36
T-110 110 29 50*50*130 50
T-155 155 41 55*55*150 72
T-240 240 64 65*65*155 118
T-360 360 95 75*75*160 152
T-460 460 121 75*75*190 185
T-660 600 160 95*95*190 225
